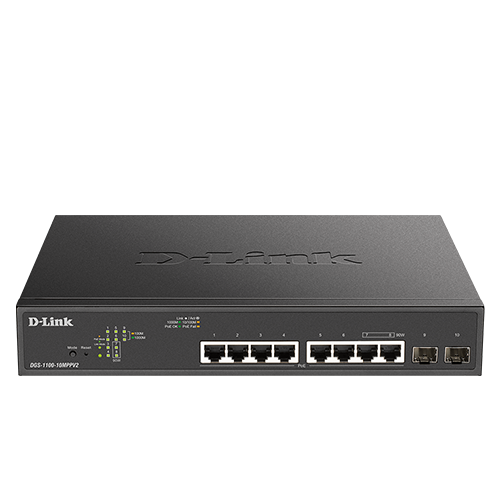

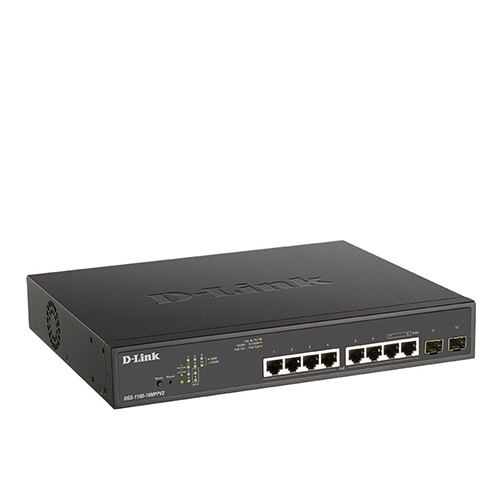

D-LINK DGS-1100-10MPPV2 10-Port Gigabit PoE++ Smart Managed Switch
เพิ่มเมื่อ: 2023-08-06 17:28:31.0
แก้ไขล่าสุด: 2026-03-22 16:29:05.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) D-LINK DGS-1100-10MPPV2 10-Port Gigabit PoE++ Smart Managed Switch
D-LINK DGS-1100-10MPPV2 10-Port Gigabit PoE++ Smart Managed Switch
SWITCH (สวิตซ์) D-LINK DGS-1100-10MPPV2 10-Port Gigabit PoE++ Smart Managed Switch
• 8 x 10/100/1000BASE-T PoE ports
• 2 x SFP ports
• Supports IEEE 802.3at/bt
• Supports IEEE 802.3bt PoE++ (Port 7 – 8) up to 90W
• 242W PoE Power Budget
• Innovative D-Link Green energy saving features
• Complete web interface for comprehensive switch management
Specifications
Auto MDI/MDIX • Yes
10/100/1000BASE-T PoE ports (802.3af/at) • 8
802.3bt 90W Support • Yes (Port 7-8)
10/100/1000BASE-T ports (Including PoE ports) • 8
Gigabit SFP ports • 2
Port-based Bandwidth Control • Yes
Class of Service (CoS) • Yes
802.3x Flow Control • Yes
Store-and-Forwarding • Yes
Comply with RoHS • Yes
Energy Efficiency Ethernet (EEE) • Yes
FAN • Smart Fan
Jumbo Frame • 10,000 bytes
Loopback Detection (LBD) • Yes
IGMP Snooping • Yes
802.1AX Link Aggregation • Yes
802.3ad Link Aggregation • Yes
SNMP • Yes
Web-based GUI • Yes
D-Link Discover Protocol (DDP) • Yes
D-Link Network Assistant • Yes
Port Mirroring • Yes
Cable Diagnostics • Yes
Switch Capacity • 20 Gbps
Max. Packet Forwarding Rate • 14.88 Mpps
Maximum Power Consumption (PoE On) • 292W
Maximum PoE Budget • 242W (30W max. per PoE Port 1-6 & 90W max. per Port Port 7-8)
Rate Limiting • Yes
Power Input • AC: 100-240V
Queue Handling • Yes
Strict Priority Queue (SPQ) • Yes
Weighted Round Robin (WRR) • Yes
SSL • Yes
Broadcast/Multicast/Unicast Storm Control • Yes
Traffic Segmentation • Yes
D-Link Safeguard Engine • Yes
DoS Attack Prevention • Yes
802.1D Spanning Tree (STP) • Yes
802.1w Rapid Spanning Tree (RSTP) • Yes
Dimension • 280 x 180 x 44mm
Weight • 2.0kg
Operation Temperature • -5-50°C
802.1Q VLAN • Yes
Port-based VLAN • Yes
Voice VLAN • Yes
Auto Surveillance VLAN • Yes
Asymmetric VLAN • Yes
EMI Certification • FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI
Safety Certification • cUL, UL, LVD, CB, BSMI
