HIKVISION DS-3E1526P-SI 24 Port Gigabit Smart POE Switch
เพิ่มเมื่อ: 2025-05-01 18:26:31.0
แก้ไขล่าสุด: 2025-05-01 18:26:44.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) HIKVISION DS-3E1526P-SI 24 Port Gigabit Smart POE Switch, 24 Gigabit PoE ports, 2 Gigabit SFP ports, 802.3af/at, PoE power budget 370W

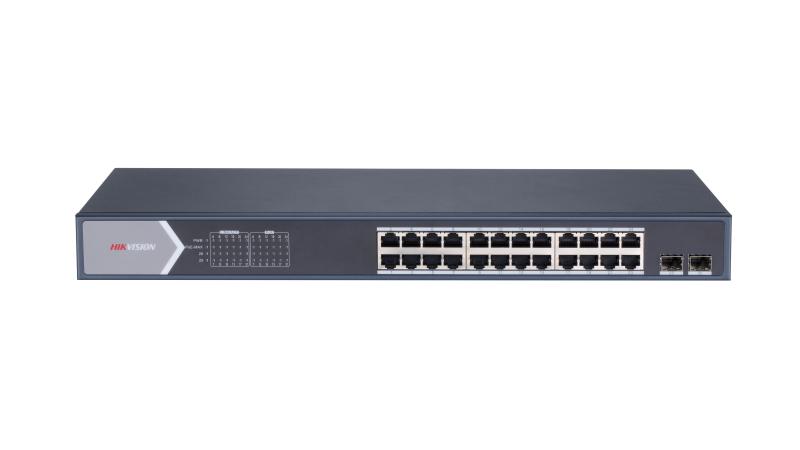

HIKVISION DS-3E1526P-SI
SWITCH (สวิตซ์) HIKVISION DS-3E1526P-SI 24 Port Gigabit Smart POE Switch, 24 Gigabit PoE ports, 2 Gigabit SFP ports, 802.3af/at, PoE power budget 370W
- 24 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
Ports : 24 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC Address Table : 8 K
Switching Capacity : 56 Gbps
Packet Forwarding Rate : 41.66 Mpps
Internal Cache : 4.1 Mbits
PoE Standard : IEEE 802.3af,IEEE 802.3at
PoE Power Pin : End-span: 1/2(+), 3/6(-);
PoE Port : PoE: Ports 1 to 24
Max. Port Power : 30 W
PoE Power Budget : 370 W
Shell : Metal material
Net Weight : 2.975 kg (6.56 lb)
Gross Weight : 3.535 kg (7.79 lb)
Dimensions (W × H × D) : 440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')
Operating Temperature : 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity : 5% to 95% (no condensation)
Relative Humidity : 5% to 95% (no condensation)
Power Supply : 100 to 240 VAC, 50/60 Hz, Max. 6.3 A
Installation Mode : Rack (equipped with mounting ears)
Max. Power Consumption : 400 W
Power Consumption in Idle : 30 W
Surge Protection : 6 KV
Long Range :
Ports 1 to 24: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Port Isolation :
Ports 1 to 24: port isolation mode to improve network security.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog :
Ports 1 to 24: auto detect and restart the cameras that do not respond.
