HIKVISION DS-3T0510HP-E/HS 8 Port Gigabit Unmanaged Harsh POE Switch
เพิ่มเมื่อ: 2025-05-03 16:44:57.0
แก้ไขล่าสุด: 2025-05-03 16:45:11.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comIndustrial POE Switch HIKVISION DS-3T0510HP-E/HS 8 Port Gigabit Unmanaged Harsh POE Switch

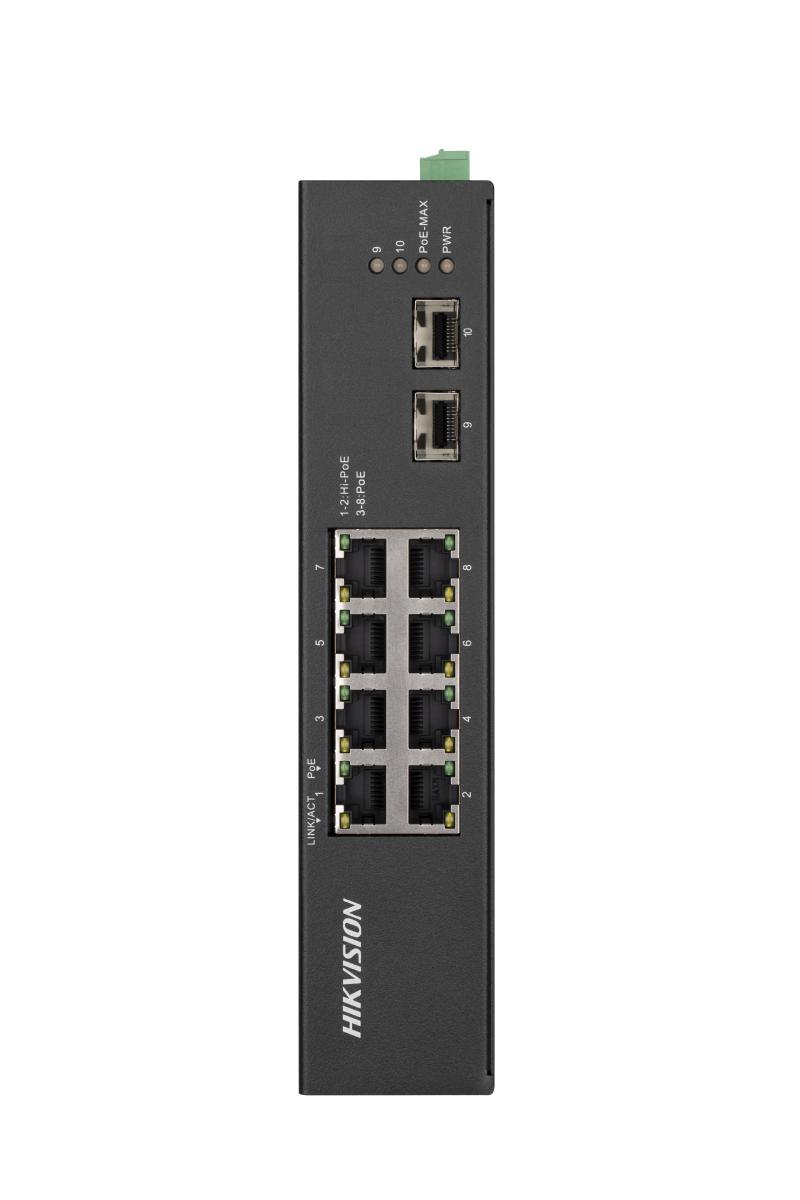

HIKVISION DS-3T0510HP-E/HS
Industrial POE Switch HIKVISION DS-3T0510HP-E/HS 8 Port Gigabit Unmanaged Harsh POE Switch
- 6 × gigabit PoE RJ45 port, 2 × gigabit Hi-PoE RJ45 port and 2 × gigabit SFP fiber optical port.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 90 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 kV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Wire-speed forwarding.
- Wider temperature (-30 °C to 65 °C) design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
Ports : 8 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC Address Table : 4 K
Switching Capacity : 20 Gbps
Packet Forwarding Rate : 14.88 Mpps
Internal Cache : 1.5 Mbits
PoE Standard : IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
PoE Power Pin : 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-),End-span: 1/2(-), 3/6(+)
PoE Port :
Hi-PoE: Ports 1 to 2
PoE: Ports 3 to 8
Max. Port Power :
Ports 1 and 2: 90 W
Ports 3 to 8: 30 W
PoE Power Budget : 110 W
Shell : Metal material, fan-free design
Net Weight : 0.585 kg (1.29 lb)
Gross Weight : 1.11 kg (2.45 lb)
Dimensions (W × H × D) : 197.0 mm × 114.2 mm × 42.2 mm (7.76'' × 4.50'' × 1.66'')
Operating Temperature : -30 °C to 65 °C (-22 °F to 149°F)
Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity : 5% to 95% (no condensation)
Relative Humidity : 5% to 95% (no condensation)
Power Supply : 54VDC, 2.5A
Max. Power Consumption : 120 W
Power Consumption in Idle : 10 W
Installation Mode : Desk-Mounted,Rail
Surge Protection : 6 kV
Long Range : Ports 7 to 8: up to 300 m
Long range performance may vary depend on camera model or cable condition.
Port Isolation : Ports 1 to 8: port isolation mode to improve network security.
PoE Watchdog : Ports 1 to 8: auto detect and restart the cameras that do not respond.
